SERIES 35F, 35FP, 3505F, & 3505FP ACCESSORIES









PACKING GLAND FLANGE & INSERTION RETRACTION ASSEMBLY

The INTRUDRRR series 35F and 35FP are supplied with a 316 stainless steel flanged packing gland insertion/retraction system for unit installation and removal from the pipeline under pressure/flow conditions. They easily install vertically or horizontally on 6”or 8” ANSI flanges.

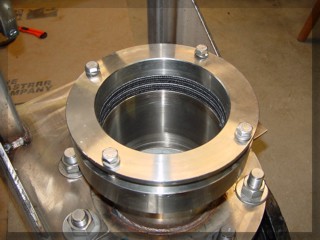

The PG-1 packing gland compression design utilizes Teflon packing rope and provides a water tight seal around the barrel of the CIU in low and high pressure pipeline applications.

The IR-1 Insertion/Retraction assembly utilizes a 2,000 lb. Rated split reel worm gear winch to pull the CIU in and out of the packing gland. The worm gear design is self braking and holds the CIU in place during operation.

For horizontal installations the assembly is supplied with a floor extension support bracket to insure stable vibration free operation.

PG-1 PDF Download | IR-1 PDF Download







KNIFE GATE VALVE

The INTRUDRRR series 35F and 35FP are supplied with a 316 stainless steel flanged knife gate valve for isolation during unit installation or removal from the pipeline under pressure/flow conditions. They easily install vertically or horizontally on 6”or 8” ANSI flanges.

6" Knife Gate Valve PDF Download

8" Knife Gate Valve PDF Download











FX-1 FLEXIBLE FEED HOSE

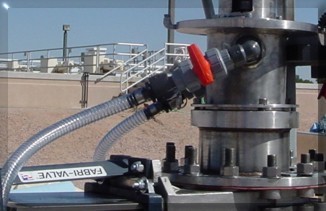

The INTRUDRRR series inline mixers can be supplied with PVC wire reinforced flexible feed hoses. The hoses are supplied with quick disconnect cam & groove fittings for ease in removal. PVC bushings and ball check valve are supplied standard with the series 35F and 35FP mixers.

FX-1 PDF Download
