GAS MASTRRR SERIES 32XP

EXPLOSION PROOF SUBMERSIBLE NON-VACUUM LIQUID CHEMICAL MIXER





GAS MASTRRR Series 32XP description

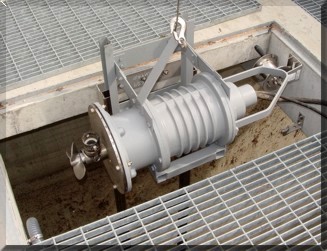

The GAS MASTRRR series 32XP explosion proof submersible induction mixers are designed for high rate flash mixing of chlorine solution or sodium hypochlorite into SSO & CSO basins for storm water/wastewater overflow disinfection. The design allows the sodium hypochlorite or chlorine solution to be flash mixed directly into the water stream with superior velocity gradient mixing intensity. The units are non-vacuum style for liquid chemicals.

The 32XP utilizes a Hasteloy C propeller and provides a high GPM axial chemical dispersion for superior velocity gradient mixing in small or large channels or basins. The units are available in ranges from 2 - 25 Hp for feed rates up to 60 GPM liquid chemical per unit.

The units easily install with new or retrofit with existing chemical feed equipment. Stainless steel guide rails and lifting crane/hoists are supplied for easy retrieval of the unit for maintenance inspection.

CSO & SSO APPLICATIONS

The series 32XP utilizes a large diameter Hasteloy C propeller for high GPM axial dispersion and excellent chemical compatibility.

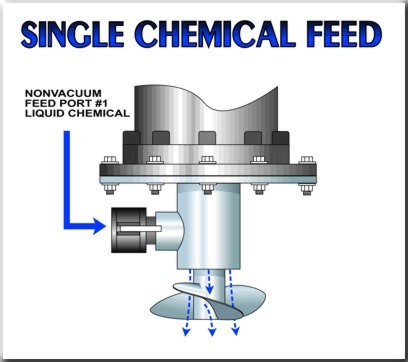

The single chemical through feed design allows a liquid to be flash mixed directly into the water stream. Applications include sodium hypochlorite or chlorine solution for chlorination in CSO or SSO basins.
